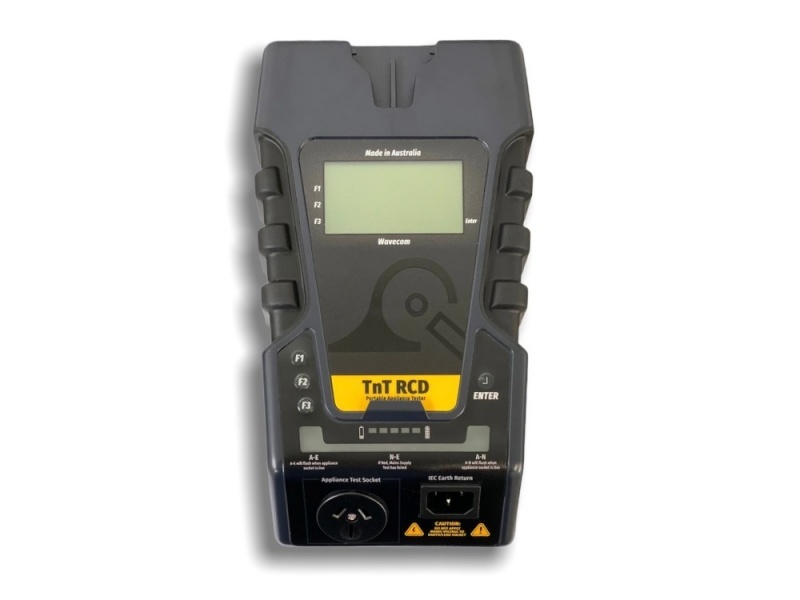

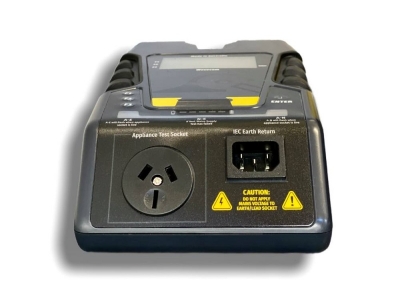

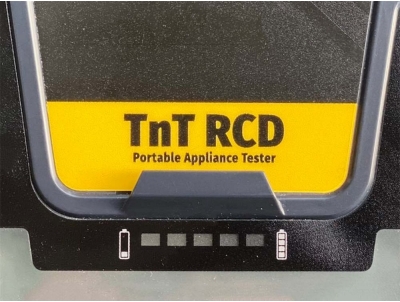

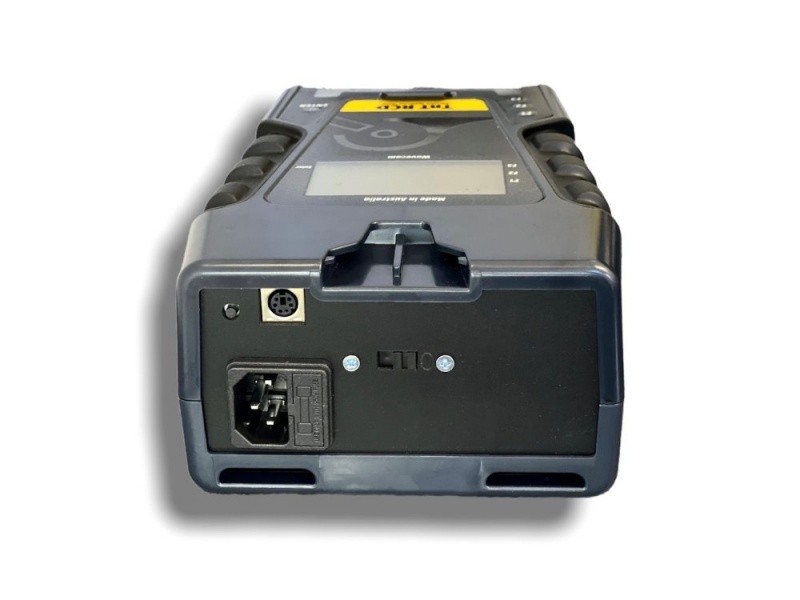

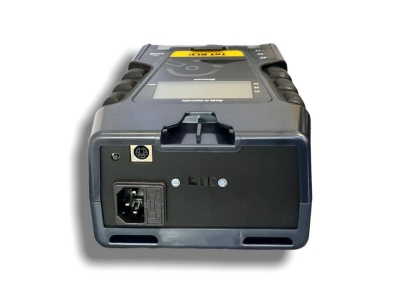

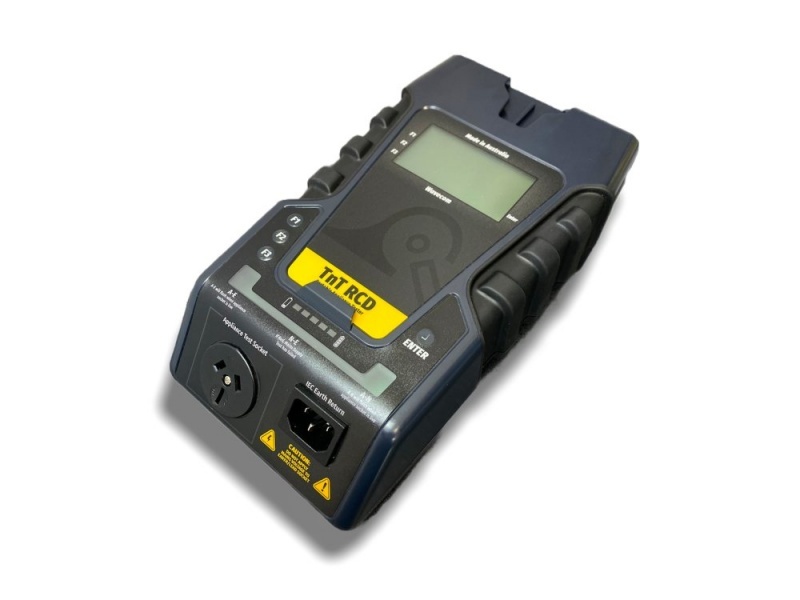

Wavecom TNT RCD 10A Portable Appliance Tester
The Wavecom TNT RCD 10A (Generation 5) offers a simple and cost-effective test and tag solution for those needing to test both standard 240V appliances and fixed or portable RCDs. With an in-built isolation transformer and lithium-ion battery, the TNT RCD is one of the better basic PAT Tester models while staying easy to use. It’s a great choice for entry-level users and is considered a step up from the TNT EL. The TNT RCD 20A is also available for 20A appliances.
Key Features:
- Tests fixed and portable RCDs: Full functionality for 240V appliances and RCD testing
- In-built isolation transformer: Safe RCD testing without external equipment
- Long battery life: Lithium-ion battery capable of 3000 tests on a single charge

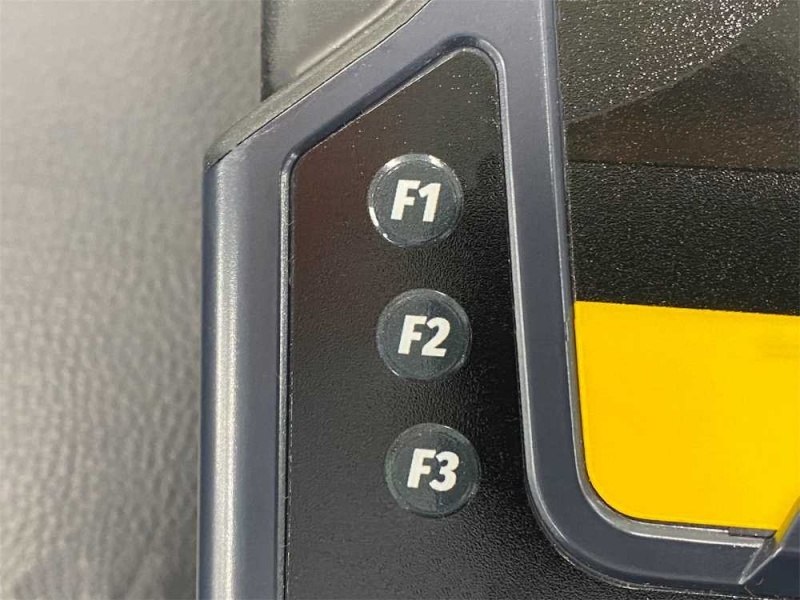

- Simple operation: One-button Class I and Class II test selections (F1 and F2)
- Displays actual test readings: Volts, amps, true power, and reactive power
- PASS/FAIL indicator: Quick checks at a glance
- Impact resistant casing: Rugged and flame-retardant housing
- Meter Mode: View real-time electrical characteristics of tested appliances
- Fully compliant: Meets New Zealand AS/NZS3760 standards

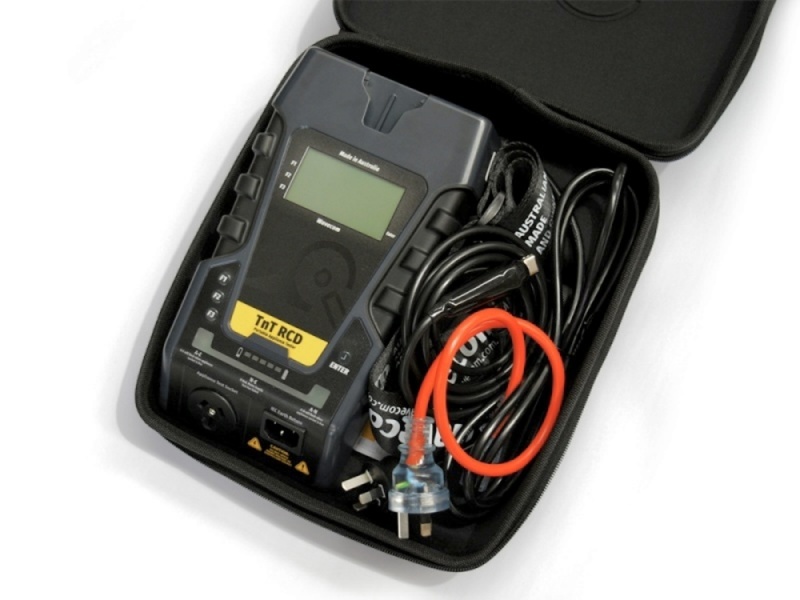

What’s Included:
Wavecom TNT RCD 10A Portable Appliance Tester, Soft carry case, Extension Lead Adaptor, Earth Bond Lead, Calibration Certificate, User Manual.
SKU: NWCMTNT-RCD
-
2 Years
-
230 VAC - 260 VAC. 3W. 50hZ
-
1.3kg
-
Case: Impact Resistant, Flame Retartant
Size: 170W X 225L X 110H -
500v, 250v Selectable
-
Current 200mA DC
Pass Limit <1.0Ω -
Settable Trip, 2-500MA ± <2.5% Of Valve
Trip Time, 0 - 300 MS ± <1 MS -
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 To 2400VA
Power: 0 To 2400W -
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp -
Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS -
CAT III 300V
Internal Fuse Protected 1A
DUT Test Protected At 10A
