Generation 4 TNT - ELB

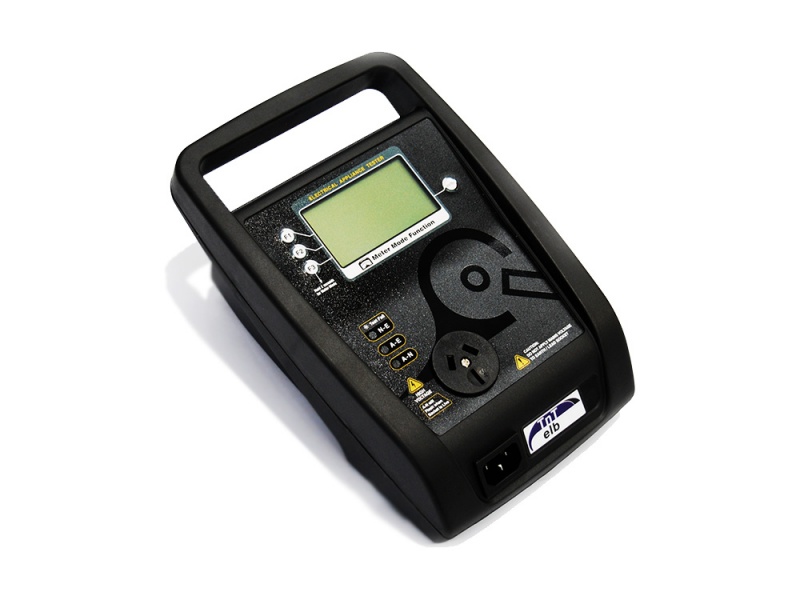

The TNT -elb is a basic a user-friendly appliance tester which the same functionality as the older TNT -el, although its been given an upgrade to include a battery charger. This means you'll have much greater portability and not be restricted to using just the power supply.
The battery charger allows you to conduct up to 3000 tests before it needs any recharging, which can be done from any phone charger (you wont need to change the batteries).
The Australian made TNT -elb is also capable of conducting Leakage Current testing, which is a rarity for testers priced in this bracket. Another additional benefit is its ability to test sensitive electronic equipment that cannot be tested using a standard insulation tester.
Features
- PASS/FAIL indicator
- Simple one button testing - press 'F1' for Class I tests and 'F2' for Class II tests

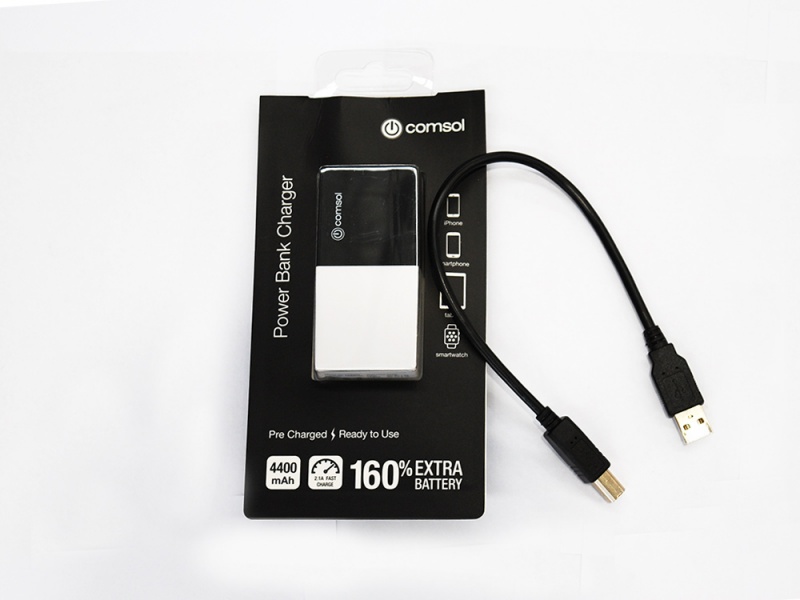

- Comes fitted with power bank charger (lasts for 3000 tests)
- Batteries don't need to be changed
- Ergonomic built-in carry handle
- Unique meter mode function (must be connected to mains power)
- Fully compliant to AS/NZS 3760
- Impact resistant and flame retardant casing
Warranty: 2 Years

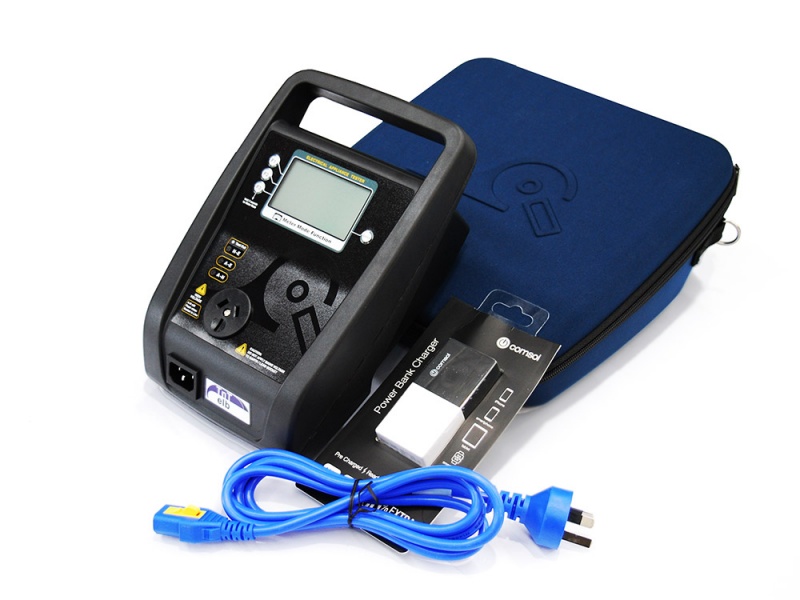

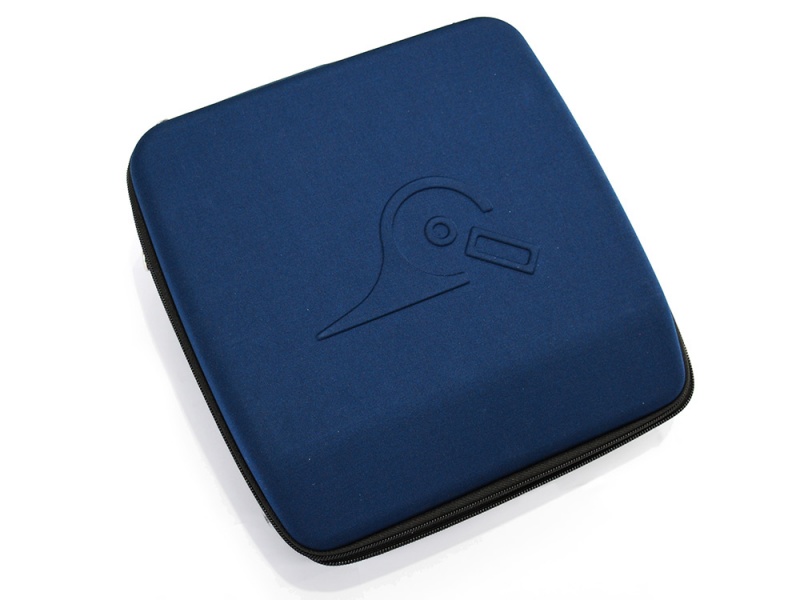

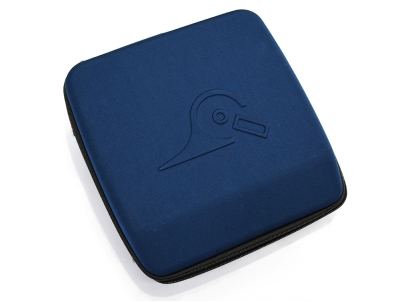

Unit supplied with: Carry Case and Strap, Lithium-Ion Battery Pack, USB-B Lead, Micro USB Lead, 240V Extension Lead Adaptor, Earth Bond Lead, Manual and Calibration Certificate.
-
3000 tests
-
1.4kg
-
230 VAC - 260 VAC. 3W. 50hZ
-
Case: Impact Resistant, Flame Retardant
Size: 170W x 225L x 110H -
240 VAC @ 2 mA
-
500v *250v Selectable
Pass Limit > 1MΩ -
Current: 200 mA DC
Pass Limit < 1.0Ω -
Class 1 Pass ≤ 5 mA RMS
Class 2 Pass ≤ 1 mA RMS -
Voltage: 200 to 265VAC
Load Current: 0.0 to 10Amp -
CAT III 300V
Internal Fuse Protected 1A
A full spec sheet is available to download
