TnP - 500B

Availability: in stock
Dispatched Same Day
100% Money Back Guarantee
The all new TnP-500B model is similar to the other TnP-500 units, but comes with an additional lithium ion battery. This will ensure you'll have greater flexibility and portability when testing.
NZD $5,799.00 Excl. GST
0800 111 780
If you have any questions about this product, call our customer service or send us an e-mail.
Product Description

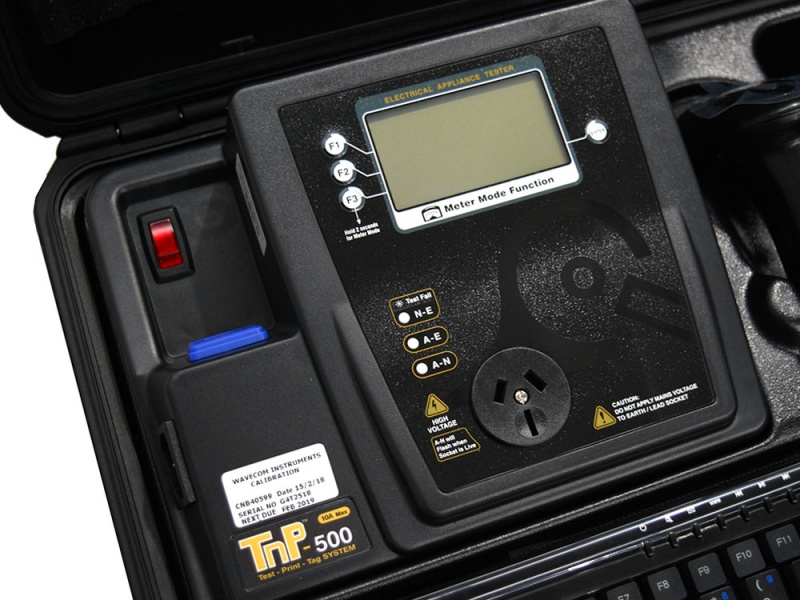

Wavecom TnP-500 with Battery

The all new TnP-500B is similar to the other TnP-500 units, but comes with an additional lithium ion battery. This will ensure you'll have greater flexibility and portability when testing (able to test 3000 items on one charge). Additionaly, no Isolation Transformer is required to test RCD's with this unit as it has been built-in already. Everything else with TnP-500B still has the same easy functionality to streamline the entire test and tag process, making it particularly ideal for people needing to test a large number of appliances. This might include those operating a test and tag business or obliged to test large facilities or multiple sites.

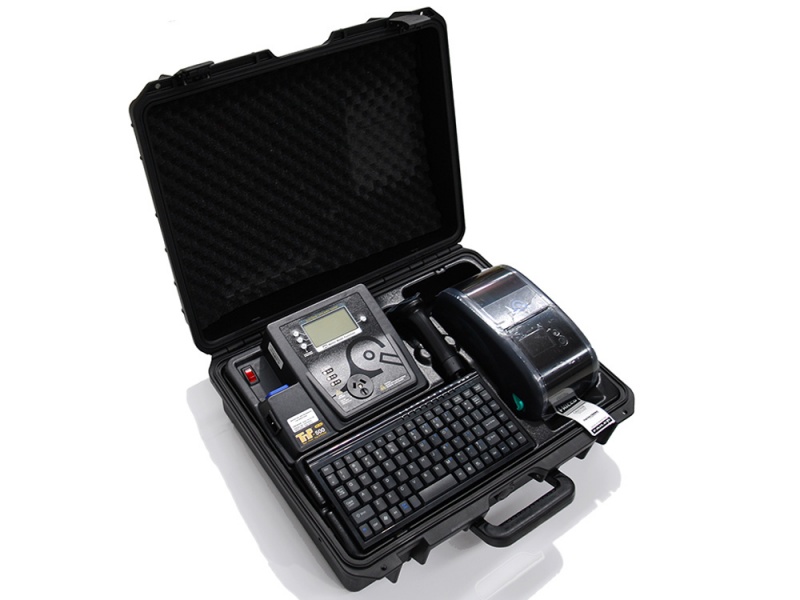

This setup comes completely integrated in a robust carry case, with all accessories you'll need to complete the test and tag process, including a thermal printer, barcode scanner, WinPAT's software and keyboard.
The TnP-500 effectively allows you to print professional tag labels on the spot and then effortlessly re-test items using the barcode scanner. Using WinPAT's Premium software to manage your database of records, you won't need to record any of your results manually, as your appliance tester will seamlessly connect to your computer. This means you can record all your appliances by using the mobile memory unit, while there's also no need to have a PC with you on site when testing.
The TnP Appliance Tester will conduct all tests required by AS/NZS 3760 (including RCD testing), with results and progress shown on a large display and one button testing. It can also store up to 5000 items and contains a library of thousands of locations, descriptions, makes, models and user comments. This can then be used to create and print professional reports on your PC.
To help get you started, we've included 1 free roll of 500 printable tags and 1 roll of thermal ribbon.
This package is supplied with:

  • Generation 4 Wavecom TnP Appliance Tester (with Memory)
  • In-built Lithium Battery
  • WinPATs Premium Software
  • Barcode Scanner
  • Thermal Printer
  • 1 FREE roll of 500 printable tags
  • 1 FREE roll of thermal ribbon
  • QWERTY Keyboard

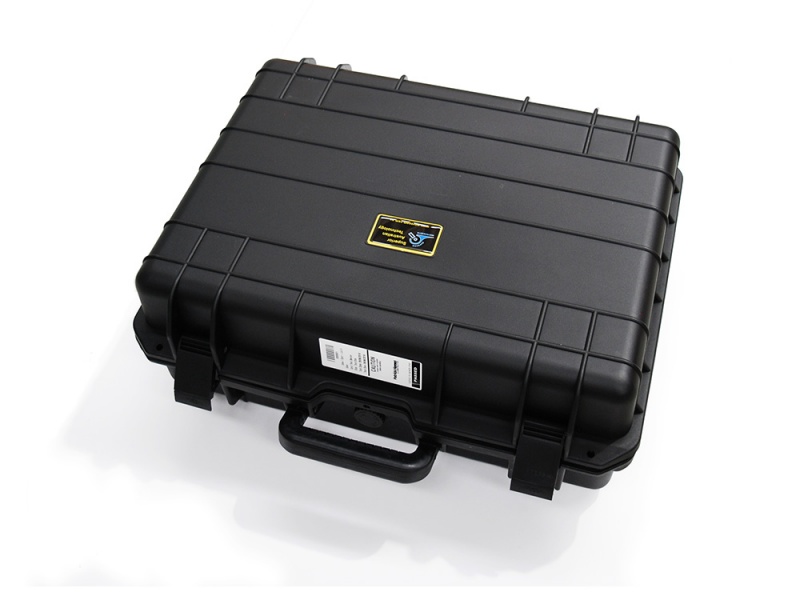

  • NEW Heavy Duty Carry Case
  • Earth Bond Lead
  • 240V Extension Lead Adaptor
  • Calibration Certificate
  • Manual

*Software is not compatible with MAC (PC only)

  • 2 Years
  • 3000 Tests
  • 1.3kg
  • 5000 Items
  • Load Current Max, 10A
  • 500V, 250V Selectable
  • 230 VAC - 260 VAC. 3W. 50hZ
  • Class 1 Pass < 5 MA RMS
    Class 2 Pass < 1 MA RMS
  • Voltage: 200 to 265VAC
    Load Current: 0.0 to 10Amp
  • Voltage: 200 to 265VAC
    Load Current: 0.0 to 10Amp
    Apparent Power: 0 to 2400VA
    Power: 0 to 2400W
  • Settable Trip, 2 - 500 MA + < 2.5% of Valve
    Trip Time: 0 - 300 MS + < 1 MS
  • Current 200mA DC
    Pass Limit < 1.0Ω
  • Case: Impact Resistant, Flame Retartant
  • Circuit Continiuity Test: 240VAC @ 2mA

A full spec sheet is available to download
