Wavecom TNT + M

Wavecom G4 TNT + M

The Wavecom TNT+M is one of Wavecom's high end testers that has downloadable memory and data entry.

An added benefit of the + M series is its storage capacity of 5000 items, with 8 tests per record (40,000 total tests). Each item includes site location, description, make, model, serial no, asset no, test frequency, test type, comments and number of tests.

Similar to the other Gen 4 models, It includes Wavecom's new Meter Mode function which display's volts, amps, true power and reactive power of an individual appliance.

Features

Tests fixed and portable RCD's
Memory storage of 5000 items
Compatible with Wavecom Barcode scanner & Thermal Transfer printer
Unit displays actual test readings
PASS/FAIL indicator
One button testing

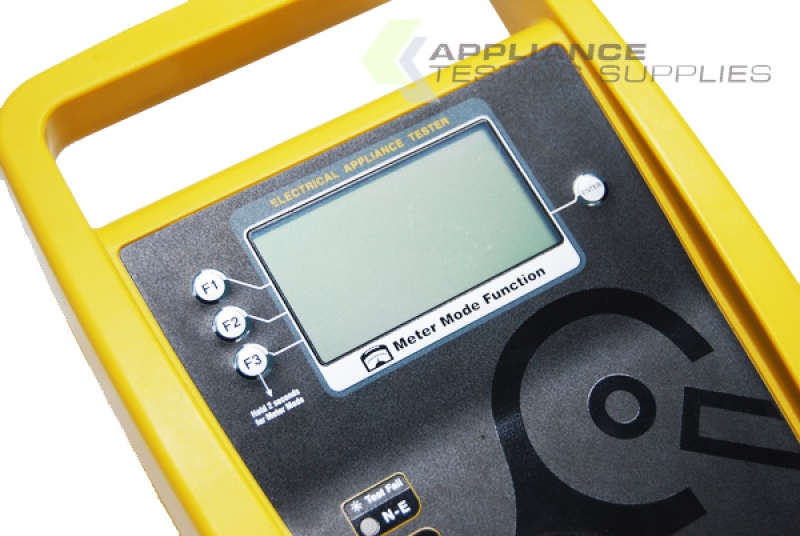

Meter Mode function
Impact resistant and flame retardant casing
Built-in carry handle
Processor firmware factory updateable

Warranty: 2 Years

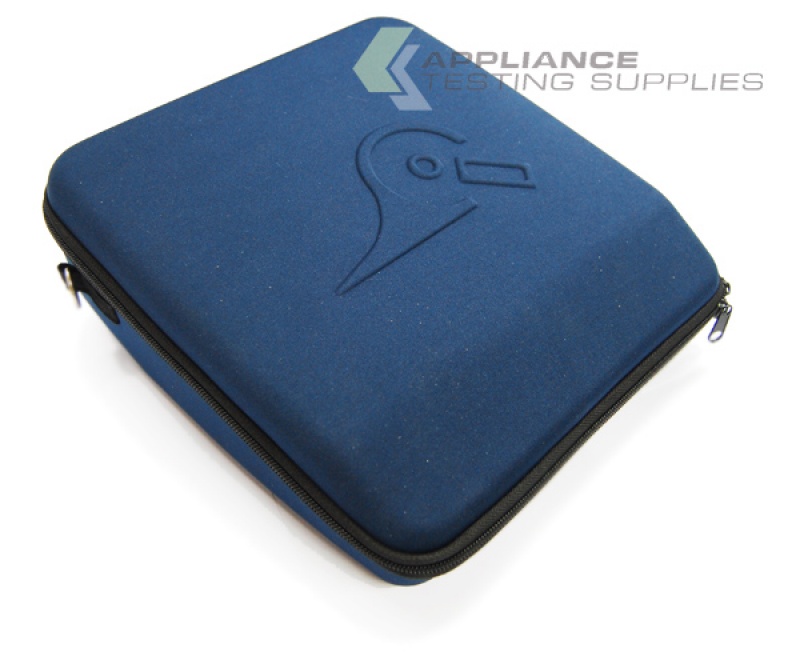

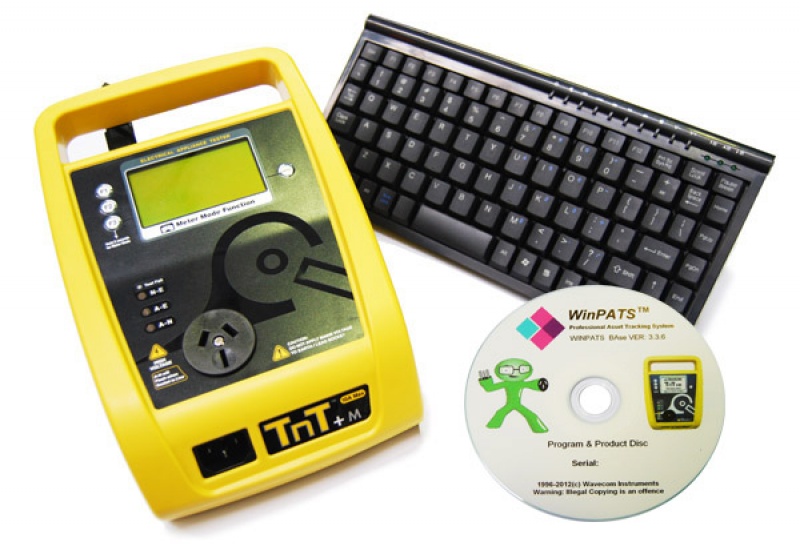

Unit Supplied with: Carry Case, 240V Extension Lead Adaptor, Earth Bond Lead, Calibration Certificate, Manual, WINPATs Base Software & Keyboard

Specifications

Warranty
2 Years
Weight
1.3kg
Input
230 VAC - 260 VAC. 3W. 50hZ
Mechanical
Case: Impact Resistant, Flame Retartant
Size: 170W x 225 x 110H
Power Test
Load current max, 10A
Insulation Test
500v, 250V Selectable
Lead Continuity
Circuit continuity test 240VAC @ 2mA
Earth Bond
Current 200mA DC
Pass Limit < 1.0Ω
RCD Test
Settable Trip, 2 - 500 mA ± <2.5% of valve
Trip Time, 0 - 300 mS ± <1 mS
Earth Leakage
Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS
Power Measurement
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Meter Mode
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 to 2400VA
Power: 0 to 2400W
Safety
CAT III 300V
Internal Fuse Protected 1A
DUT Test Protected At 10A
